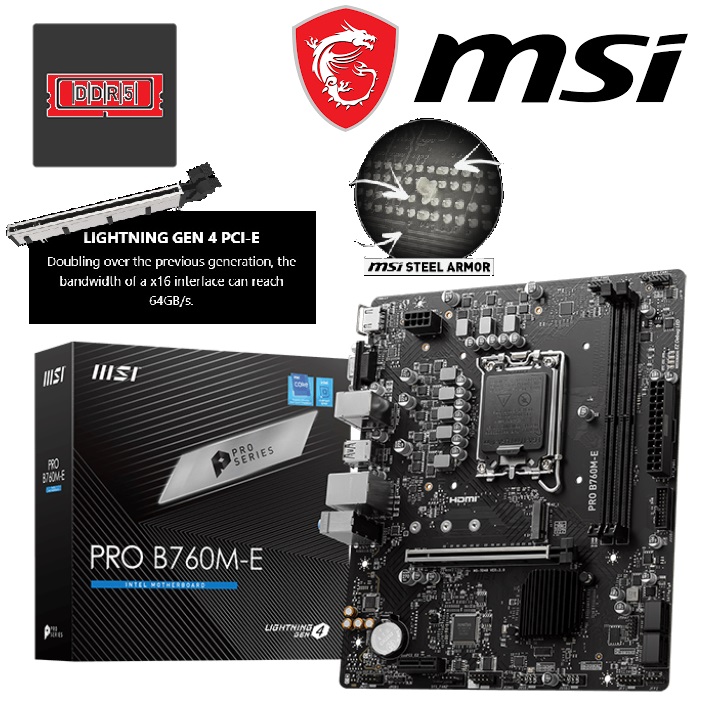

MSI PRO B760M E Motherboard DDR5 Micro ATXExpert FeaturesSupport Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socketSupports DDR5 Memory, Dual Channel DDR5 6400 MHz (OC)Core Boost : With premium layout and digital power design to support more cores and provide better performanceMemory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibilityLightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experienceSteel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strengthExpert SpecsCHIPSETINTEL B760CPUSupport Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700MEMORY2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6400 (OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400 MHz • 1DPC 2R Max speed up to 5600 MHzSupports Intel® XMP 3.0 OCSupports Dual-Controller Dual-Channel modeSupports non-ECC, un-buffered memoryAUDIORealtek® ALC897 Codec 7.1-Channel High Definition AudioSTORAGE1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.LANRealtek® RTL8111H Gigabit LANONBOARD GRAPHICS1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x VGA Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.SLOT1x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesUSB4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)INTERNAL IO1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A portsLED FEATURE4x EZ Debug LEDBACK PANEL PORTSHDMI™VGAKeyboard / MouseUSB 3.2 Gen 1 5Gbps (Type-A)LAN portAudio ConnectorsUSB 2.0USB 2.0OPERATING SYSTEMSupport for Windows® 11 64-bit, Windows® 10 64-bitPCB INFOmATX 200mmx236.16mmBOX CONTENT
