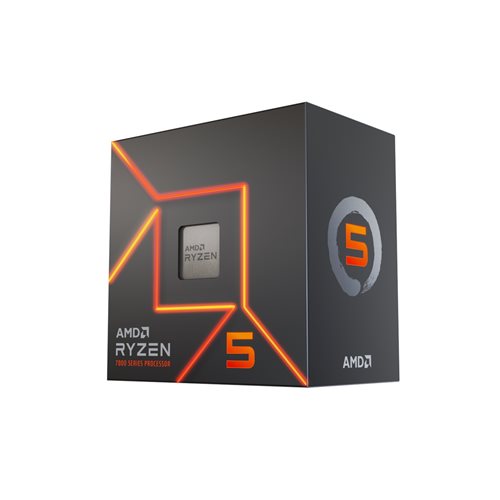

AMD Ryzen 5 7500X3D Desktop Processor General Specifications Name AMD Ryzen 5 7500X3D Family Ryzen Series Ryzen 7000 Series Form Factor Desktops, Boxed Processor Market Segment Enthusiast Desktop AMD PRO Technologies No Regional Availability NA , EMEA Former Codename Raphael AM5 Processor Architecture Zen 4 # of CPU Cores 6 Multithreading (SMT) Yes # of Threads 12 Max. Boost Clock Up to 4.5 GHz 4 GHz L1 Cache 384 KB L2 Cache 6 MB 3 Cache 96 MB Default TDP 65W Processor Technology for CPU Cores TSMC 5nm FinFET Processor Technology for I/O Die TSMC 6nm FinFET CPU Compute Die (CCD) Size 71mm² I/O Die (IOD) Size 122mm² Package Die Count 2 AMD EXPO Memory Overclocking Technology Yes Precision Boost Overdrive Yes Yes Yes CPU Socket AM5 Supporting Chipsets A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 CPU Boost Technology Precision Boost 2 Instruction Set x86-64 Supported Extensions AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 Thermal Solution (PIB) Not Included Recommended Cooler Liquid cooler recommended for optimal performance Max. Operating Temperature (Tjmax) 89C *OS Support Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit Connectivity Native USB 3.2 Gen 2 (10Gbps) 4 Native USB 3.2 Gen 1 (5Gbps) 0 Native USB 2.0 (480Mbps) 1 PCI Express Version PCIe 5.0 Native PCIe Lanes (Total/Usable) 28 , 24 NVMe Support Boot , RAID0 , RAID1 , RAID10 System Memory Type DDR5 Memory Channels 2 Max. Memory 128 GB System Memory Subtype UDIMM Max Memory Speed 2x1R DDR5-5200 2x2R DDR5-5200 4x1R DDR5-3600 4x2R DDR5-3600 ECC Support Yes (Requires mobo support) Graphics Capabilities Graphics Model AMD Radeon Graphics Graphics Core Count 2 Graphics Frequency 2200 MHz USB Type-C DisplayPort Alternate Mode Yes Key Features Supported Technologies AMD EXPO Technology , AMD Ryzen Technologies
