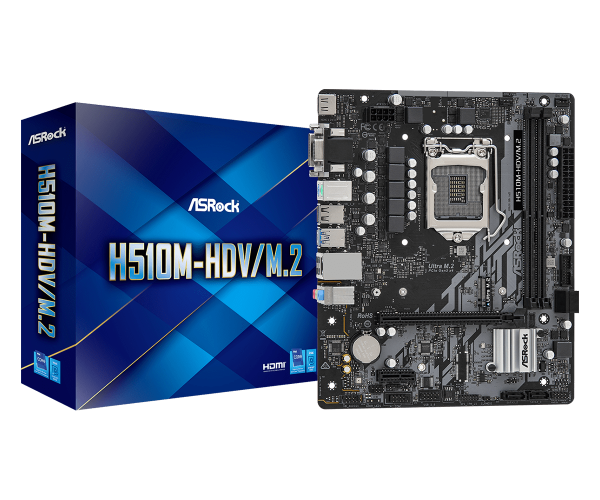

Description Unique Feature ASRock Super Alloy – Premium 50A Power Choke – Sapphire Black PCB – High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop CPU – Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200) – 5 Power Phase design – Supports Intel® Turbo Boost Max 3.0 Technology Chipset – Intel® H510 Memory – Dual Channel DDR4 Memory Technology – 2 x DDR4 DIMM Slots – Supports DDR4 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory* – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Max. capacity of system memory: 64GB** – Supports Intel® Extreme Memory Profile (XMP) 2.0 *11th Gen Intel® Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium® and Celeron® support DDR4 2666 natively. 10th Gen Intel® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium® and Celeron® support DDR4 2666 natively. **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. BIOS – 128Mb AMI UEFI Legal BIOS with multilingual GUI support – ACPI 6.0 Compliant wake up events – SMBIOS 2.7 Support – CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCST, VCCIN AUX Voltage Multi-adjustment Graphics – 11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics – Three graphics output options: D-Sub, DVI-D and HDMI** – Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz with 11th Gen Intel® Core™ Processors – Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz with 10th Gen Intel® Core™ Processors – Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) – Supports HDCP 2.2 with DVI-D and HDMI Ports (HDCP 2.3 ready with 11th Gen Intel® Core™ Processors) *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Graphics specifications may vary between CPU types. **Supports up to 2 displays simultaneously Audio – 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Supports Surge Protection LAN – Gigabit LAN 10/100/1000 Mb/s – Giga PHY Intel® I219V – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE Slots 11th Gen Intel® Core™ Processors – 1 x PCI Express 4.0 x16 Slot* 10th Gen Intel® Core™ Processors – 1 x PCI Express 3.0 x16 Slot* – 1 x PCI Express 3.0 x1 Slot *Supports NVMe SSD as boot disks Storage – 4 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug* – 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** *If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. **Supports NVMe SSD as boot disks Supports ASRock U.2 Kit Connector – 1 x COM Port Header – 1 x SPI TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin)* – 1 x Chassis Fan Connector (4-pin)** – 1 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x Front Panel Audio Connector – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. **The Chassis Fan supports the Chassis fan of maximum 1A (12W) fan power. ***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O – 1 x PS/2 Keyboard Port – 1 x PS/2 Mouse Port – 1 x D-Sub Port – 1 x DVI-D Port – 1 x HDMI Port – 4 x USB 2.0 Ports (Supports ESD Protection) – 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software – ASRock Motherboard Utility (A-Tuning) – ASRock XFast LAN UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Instant Flash – ASRock Internet Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Accessories – Quick Installation Guide, Support CD, I/O Shield – 2 x SATA Data Cables – 1 x Screw for M.2 Socket Hardware Monitor – Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans – Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans – CASE OPEN detection – Voltage monitoring: CPU Vcore, 12V, 5V, 3.3V Form Factor – Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm – Solid Capacitor design OS – Microsoft® Windows® 10 64-bit / 11 64-bit Certifications – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required)
