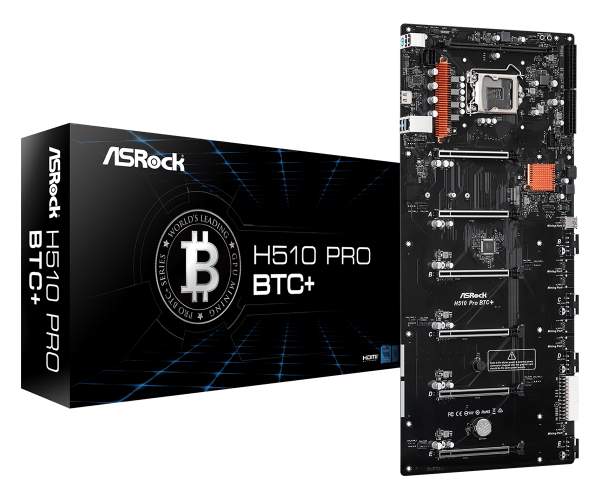

Description – Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200) – Digi Power design – 4 Power Phase design – Supports Intel® Turbo Boost Max 3.0 Technology Chipset – Intel® H510 Memory – 1 x DDR4 DIMM Slot* – Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory** – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Max. capacity of system memory: 32GB*** – Supports Intel® Extreme Memory Profile (XMP) 2.0 *2GB DRAM per module is not supported. **11th Gen Intel® Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium® and Celeron® support DDR4 2666 natively. 10th Gen Intel® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium® and Celeron® support DDR4 2666 natively. ***Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. BIOS – 128Mb AMI UEFI Legal BIOS with multilingual GUI support – ACPI 6.0 Compliant wake up events – SMBIOS 2.7 Support – CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCIN AUX Voltage Multi-adjustment Graphics – 11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics – Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) – Supports HDCP 2.3 with and HDMI 1.4 Port *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Audio LAN – Gigabit LAN 10/100/1000 Mb/s – Giga PHY Intel® I219V – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE Slots – 6 x PCI Express 3.0 x16 Slots (PCIE1 at x16 / PCIE2~6 at x1) – 1 x Mining Port (M_Port1 at x1)* *Support USB Type Riser kit Storage – 1 x SATA3 6.0 Gb/s Connector, supports NCQ, AHCI and Hot Plug – 1 x M.2 Socket, supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module Connector – 1 x System Panel Header – 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 1 x CPU Fan Connector (4-pin)* – 8 x Chassis Fan Connectors (4-pin)** – 3 x 24 pin ATX Power Connectors – 1 x 8 pin 12V Power Connector – 4 x 4 pin PCIe Power Connectors – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) – 1 x Power Button – 1 x Reset Button *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. **CHA_FAN3~CHA_FAN8 supports the chassis fan of maximum 2.5A (30W) fan power. CPU_FAN1, CHA_FAN1 and CHA_FAN2 can adjust 4-pin fan speed. Rear Panel I/O – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 2 x USB 2.0 Ports (Supports ESD Protection) – 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) Unique Feature ASRock Super Alloy – Premium 50A Power Choke – Sapphire Black PCB – High Density Glass Fabric PCB ASRock Steel Slot ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop Support CD – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Accessories – Quick Installation Guide, Support CD – 1 x SATA Data Cable – 1 x Screw for M.2 Socket Hardware Monitor – Fan Tachometer: CPU, Chassis Fans – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans – Fan Multi-Speed Control: CPU, Chassis Fans – Voltage monitoring: CPU Vcore, 12V, 5V, 3.3V Form Factor – 20.1-in x 8.8-in, 50.1 cm x 22.4 cm – Solid Capacitor design OS – Microsoft® Windows® 10 64-bit – Linux: Ubuntu 16.04 LTS / Fedora 25* *Linux O/S basic function support only, due to the compatibility of the Liunx system itself, there is no guarantee that all functions are supported. Certifications – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required)
