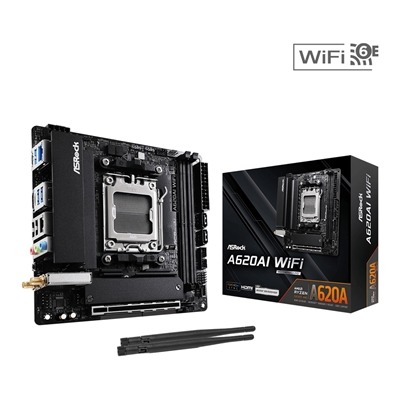

Description ASRock A620AI WIFI AMD AM5 Socket Motherboard Performance Optimized VRM DesignVRM Design8 2 1 Power Phase DesignFeaturing sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.Dr. MOSDr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. Power ConnectorHi-Density Power ConnectorCPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking. 8 Layer PCBThe 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it’s able to support the latest memory modules with most extreme memory performance! DDR5 XMP & EXPO SupportDerived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all. High Speed M.2 SolutionHyper M.2 Gen4 x4Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. Intelligent Cooling DesignAluminum HeatsinkThe first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessl Connectivity Wi-Fi 6E 802.11axeWiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks. Dual LAN DesignElevate your network’s performance, security, and flexibility with our Dual LAN configuration. Experience 2.5Gbps and Gigabit speeds, while benefiting from failover protection, VLAN segmentation, and more. Front USB 3.2 Gen1 Type-CFront USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case. POLYCHROME RGBThis motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects SignalRGBSignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility. EZ SettingAuto Driver InstallerNo need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.step1 : Install Auto Driver Installerstep2 : Update drivers neededstep3 : Done! BIOS FlashbackGet the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required. Specifications Unique FeaturesSuperb Productivity – Dual Channel DDR5Rock-Solid Durability – 8 2 1 Power Phase, 80A Dr.MOS for VCore SOC MISCUltrafast Connectivity – 2.5G LAN, 802.11axe Wi-Fi 6E ModuleEZ Update – BIOS Flashback Button, ASRock Auto Driver Installer CPUSupports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors* The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details. ChipsetAMD A620A MemoryDual Channel DDR5 Memory Technology2 x DDR5 DIMM SlotsSupports DDR5 ECC/non-ECC, un-buffered memory up to 8200 (OC)*Max. capacity of system memory: 128GB*Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules** Please refer to Memory Support List on ASRock’s website for more information.Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. BIOS256Mb AMI UEFI Legal BIOS with GUI support GraphicsIntegrated AMD RDNA graphics (Actual support may vary by CPU)1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz Audio7.1 CH HD Audio (Realtek ALC897 Audio Codec)Nahimic Audio LAN1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)Supports Dragon 2.5G LAN SoftwareSmart Auto Adjust Bandwidth ControlVisual User Friendly UIVisual Network Usage StatisticsOptimized Default Setting for Game, Browser, and Streaming ModesUser Customized Priority Control 1 x Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8111) Wireless LAN802.11axe Wi-Fi 6E ModuleSupports IEEE 802.11a/b/g/n/ac/ax/axeSupports Dual-Band 2×2 with extended 6GHz band* support2 antennas to support 2 (Transmit) x 2 (Receive) diversity technologySupports Bluetooth 5.2Supports MU-MIMO*Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.A 6GHz compatible router is required for 6E functionality. SlotsCPU:1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*Chipset:1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module15µ Gold Contact in VGA PCIe Slot (PCIE1)* PCIE1 will run at Gen4x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.Supports NVMe SSD as boot disks StorageCPU:1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*Chipset:1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*2 x SATA3 6.0 Gb/s Connectors* M2_1 is the first priority for M.2 installation.Supports NVMe SSD as boot disks RAIDSupports RAID 0 and RAID 1 for SATA storage devicesSupports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices** Requires additional M.2 NVMe expansion cards to support RAID 10 USBCPU:1 x USB 3.2 Gen2 Type-C (Rear)2 x USB 3.2 Gen2 Type-A (Rear) Chipset:1 x USB 3.2 Gen1 Type-C (Front)3 x USB 3.2 Gen1 Type-A (1 Rear, 2 Front)4 x USB 2.0 (2 Rear, 2 Front)* All USB ports support ESD Protection Connector2 x Addressable LED Headers*1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)**1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)**1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)**1 x 24 pin ATX Power Connector1 x 8 pin 12V Power Connector (Hi-Density Power Connector)1 x Front Panel Audio Connector1 x USB 2.0 Header (Supports 2 USB 2.0 ports)1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)1 x Front Panel Type C USB 3.2 Gen1 Header* Support in total up to 5V/3A, 15W LED Strip** CPU_FAN1, CHA_FAN1 and AIO_PUMP support the fan power up to 3A (36W).CPU_FAN1, CHA_FAN1 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O2 x Antenna Ports1 x HDMI Port2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)1 x USB 3.2 Gen1 Port2 x USB 2.0 Ports2 x RJ-45 LAN Ports1 x BIOS Flashback ButtonHD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFISoftwareASRock Motherboard Utility (A-Tuning)ASRock Dragon 2.5G LAN SoftwareASRock Polychrome SYNC*UEFIASRock Full HD UEFIASRock Auto Driver InstallerASRock Instant Flash*These utilities can be downloaded from ASRock Live Update & APP Shop. Accessories1 x I/O Shield2 x SATA Data Cables2 x ASRock WiFi 2.4/5/6 GHz Antennas2 x Screws for M.2 Sockets Form FactorMini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm8 Layer PCB OSMicrosoft Windows 10 64-bit / 11 64-bit CertificationsFCC, CEErP/EuP ready (ErP/EuP ready power supply is required)
