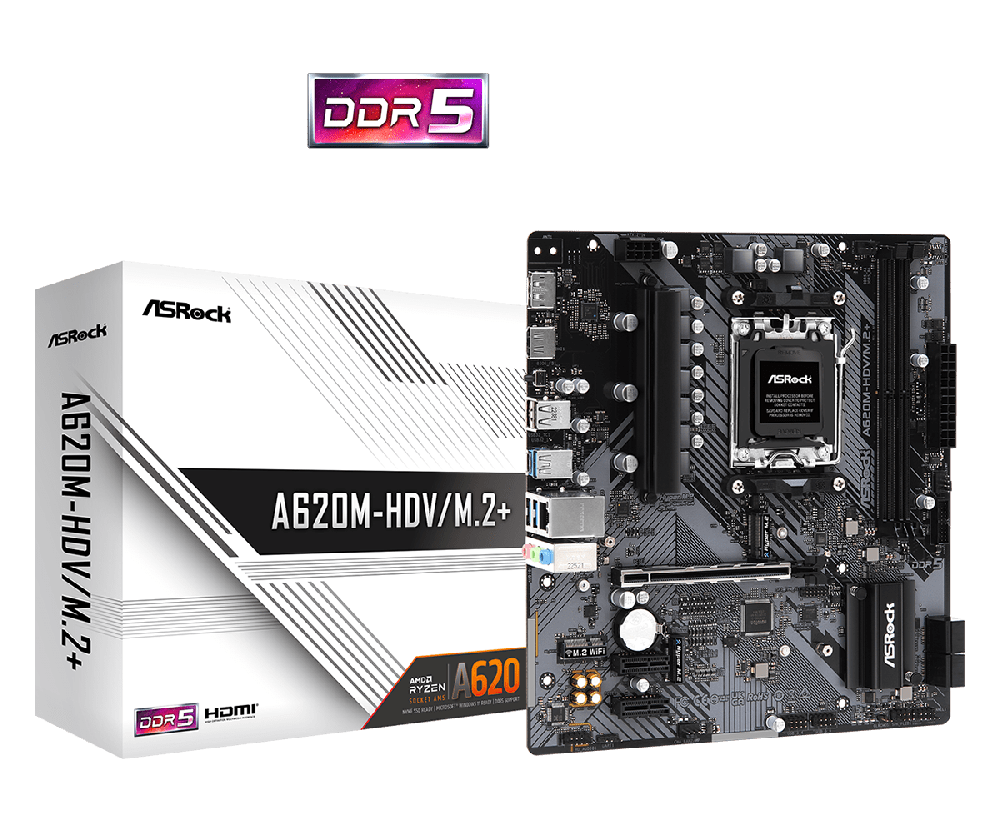

DescriptionSupports AMD Socket AM5 Ryzen™ 7000 Series Processors6 1 1 Power Phase, Dr.MOS, 120W CPU ReadySupports DDR5 6400 MHz (OC)1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFiIntegrated AMD RDNA™ 2 Graphics*Graphics Output Options: HDMI, DisplayPortRealtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio4 SATA3, 2 Hyper M.2 (PCIe Gen4x4)6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)Realtek Gigabit LANSupports ASRock Auto Driver Installer, BIOS FlashbackSpecificationsCPUSupports AMD Socket AM5 Ryzen™ 7000 Series ProcessorsChipsetAMD A620Memory2 x DDR5 DIMM SlotsIntegrated Graphics1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120HzExpansion SlotsCPU: – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset: – 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3) – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module 15μ Gold Contact in VGA PCIe Slot (PCIE1)StorageCPU: – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 4 x SATA3 6.0 Gb/s ConnectorsLANGigabit LAN 10/100/1000 Mb/s Realtek RTL8111HWireless & BluetoothN/AAudio7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
