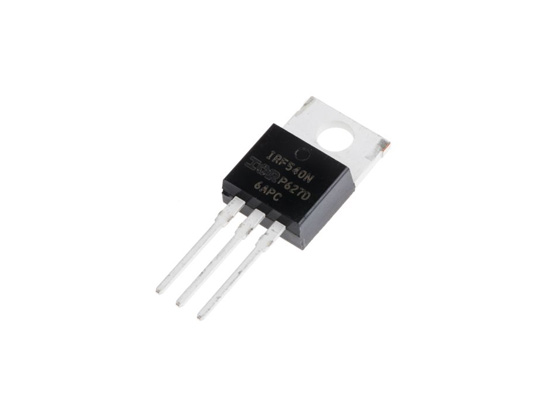

IRF540N MOSFET N-CH 100V 33A TO-220AB FET Type N-Channel Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 100V Current – Continuous Drain (Id) @ 25°C 33A (Tc) Drive Voltage (Max Rds On, Min Rds On) 10V Rds On (Max) @ Id, Vgs 44mOhm @ 16A, 10V Vgs(th) (Max) @ Id 4V @ 250µA Gate Charge (Qg) (Max) @ Vgs 71nC @ 10V Vgs (Max) ±20V Input Capacitance (Ciss) (Max) @ Vds 1960pF @ 25V FET Feature – Power Dissipation (Max) 130W (Tc) Operating Temperature -55°C ~ 175°C (TJ) Mounting Type Through Hole Supplier Device Package TO-220AB Package / Case TO-220-3 SKU: CE-IRF540N Categories: Components, Transistors Tags: IRF540N MOSFET, mosfet, N channel
